Wireless Communication LSI (Specified Low Power Radio Station)

瀏覽量：1325 上傳更新：2020-07-13

Specified low power radio station LSI realize ultra low power wireless system

LAPIS Semiconductor offers lineup of LSI which can be used for radio station for telemeter, telecontrol, and data transmission with UHF radio communication.
They are ideal for data collection and device control applications by wider communication area than 2.4GHz by wireless property of less than 1GHz and wireless communication with circumvention property against shielding.
LAPIS Semiconductor is giving high priority to the quality and provides the solutions to satisfy the regulations and various specifications.

Part No.	Compliant	Features
ML7066	426MHz/429MHz transmission/reception LSI. Compliant to STD-30 and STD-T67.	Useful to 2 systems of 426MHｚ/429MHz. By the built-in functions such as data comparison function, reduces the MCU load and contributes to saving power of the total system.
ML7386	426MHｚ transmission LSI (Capable 315-450 MHz operation)	Transmission only LSI
ML7396 series	920/950MHｚ transmission/reception LSI (Capable 750-1,000MHz operation)	Supports the packet mode of IEEE 802.15.4 d/g. Possible to manage the system by 20mW.

Applications

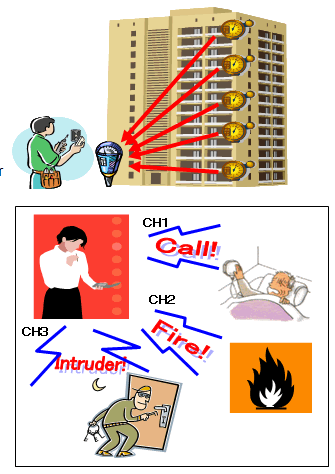

Smart-meter/Telemeter applications
Its low power consumption and ability of long distance communication enables telemeter applications.
If meters (Gas or Electric etc.) have an unit with UHF communication technology, meter readers can gather data
of each unit without visiting the actual units.
This technology is also applied to telemetering vending machines or observing units used for weather forecasts.
Home and building security
Security systems such as lock control, fire alarm, trespass detection/report system applies UHF technology.
POS and payment terminals
Unwires handy terminals used by restaurants, stores, home delivery services, and other sectors.

Part No.	ML7066	ML7386	ML7396 series
Frequency Band Width	426MHz/429MHz	426MHz*1	950MHz*2
Compliant	STD-30, STD-T67	STD-30	STD-T96
Transmission Data Rate	1,200bps 2,400bps 4,800bps	2,400bps 4,800bps 7,200bps	50kbps 100kbps 200kbps 400kbps
Channel Spacing	12.5kHz	12.5kHz/25kHz	200kHz×n(n=1-4)
Modulation Method	2-FSK	2-FSK/MSK	2-FSK/MSK 2-GFSK
Transmission Power	10mW/1mW	10mW 1mW (optional)	20mW/10mW/1mW
Rx Sensitivity	-116dBm typ.@2400bps BER=1%	－ (transmission only)	-105dBm@100kbps BER=0.1%
Power Supply Voltage	2.1V to 3.6V	1.8V to 3.6V	1.8V to 3.6V
Operating Temperature	-25°C to 65°C	-25°C to 65°C	-40°C to 85°C
Package	VQFN48 (7mm2)	WQFN28 (4mm2)	WQFN40 (6mm2)
Status	In mass production	In mass production	In mass production
1: Indicating the characteristic guarantee range. Can be set 315MHz to 450MHz. 2: Indicating the characteristic guarantee range. Can be set 750MHz to 1GHz. Please inquire the sales or dealers for the datasheets and the evaluation boards.
