UV Sensor ML8511
瀏覽量：1566 上傳更新：2020-07-15
UV Sensor ML8511
UV Sensor
ML8511

LAPIS Semiconductor developed the UV sensor ( ML8511 ) to detect a ultra violet rays with Si ( silicon ) device using the original SOI ( silicon on insulator ) technology.

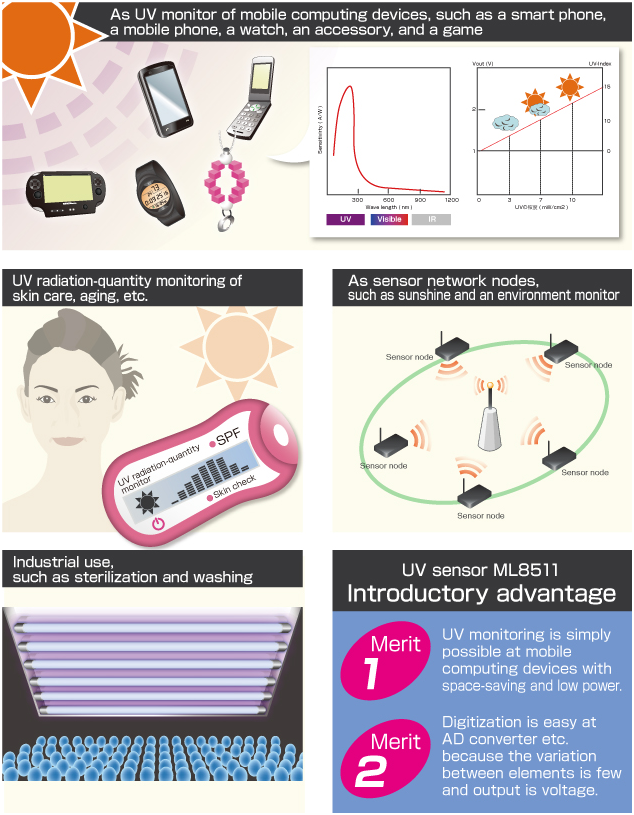

The ML8511 measures the amount of ultra violet rayses contained in sunlight, and it is used for the equipment which displays the suntan by a ultra violet rays, the guidance for UV care of skin, etc.
The ML8511 is ideal for mobile computing devices, such as a smart phone, a mobile phone, and a watch, at low power and a compact package (QFN).


ParameterSpecification
Part No.ML8511
Functional descriptionUV sensor with amplifier circuit
Operating voltage2.7 to 3.6V
Operating temperature-20 to +70°C
Maximum-sensitivity wave length365nm
Sensitivity regionUV-A and UV-B
Output typeAnalog
Current Consumption
(Operating mode / Standby mode)		300μA / 0.1μA
