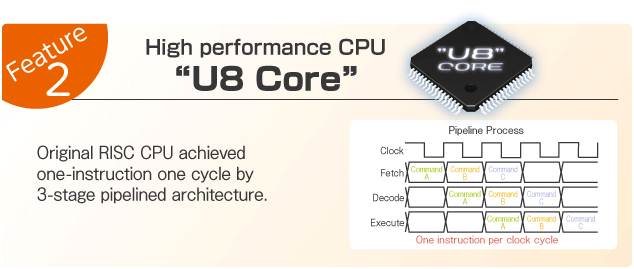

The ML610Q400 series is high performance CMOS 8-bit microcontrollers built-in with LAPIS Semiconductor's original RISC 8bit CPU "U8 Core". The CPU core is capable of efficient instruction execution in one-instruction one cycle by 3-stage pipelined architecture parallel processing. The clock generation circuit is applied the dual clock composition and operates in low-speed mode and power-saving mode. This family products are popular for the battery-driven hand-held type applications and in a variegated field.

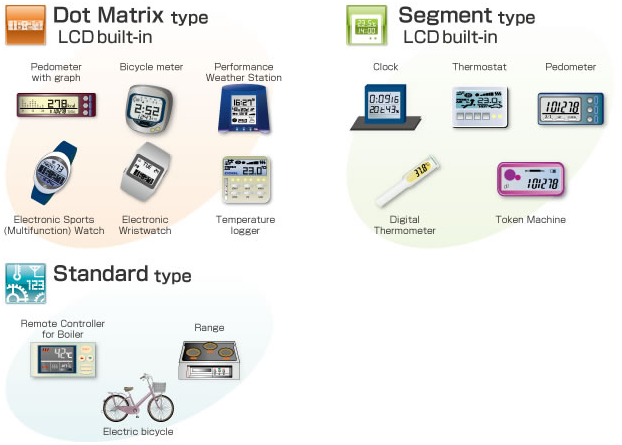

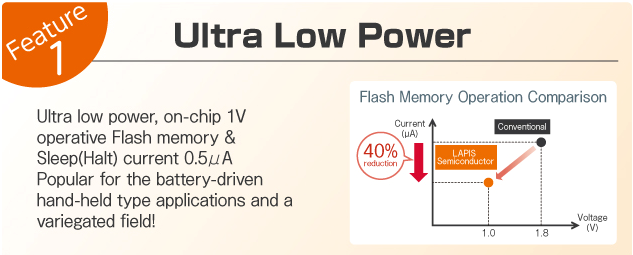

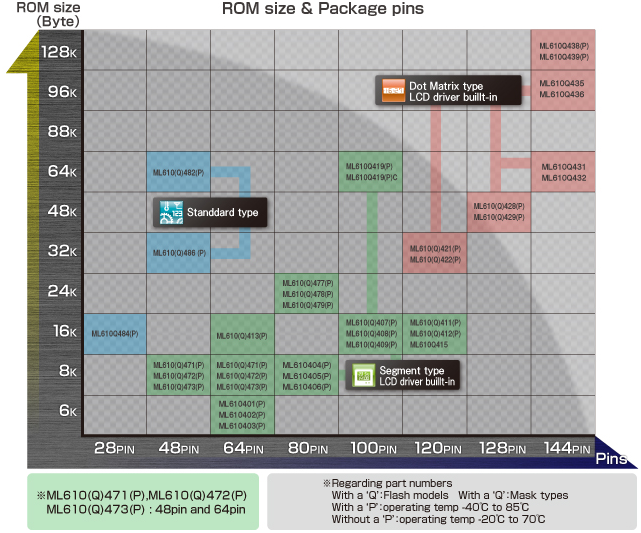

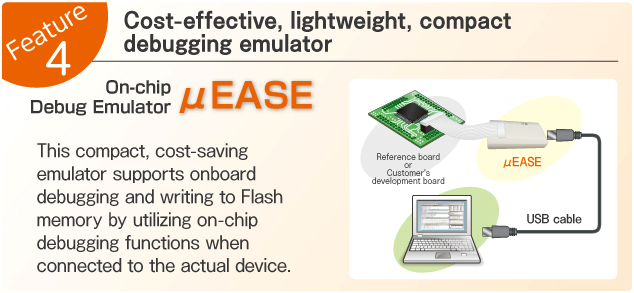

This series is a flash memory which operates at only 1V based on LAPIS Semiconductor's proprietary low power technology. Fine power management, along with a highly-efficient CPU in the RISC architecture, reduces the power consumption. With built-in LCD driver, 2 A/D converters, on-chip debug function, this product is suitable for small portable devices with LCD display, such as wrist watch, pedometer, heart rate monitor, and thermostat. The rewritable flash memory microcontroller shortens the development/production time; the low power feature delivers a smaller/lighter battery; and a variety of built-in peripheral circuits minimize a device size. This product can be operated under wider operating temperature (-40°C to 85°C) so that is can be used in industrial electronics, such as a data logger for food temperature management.

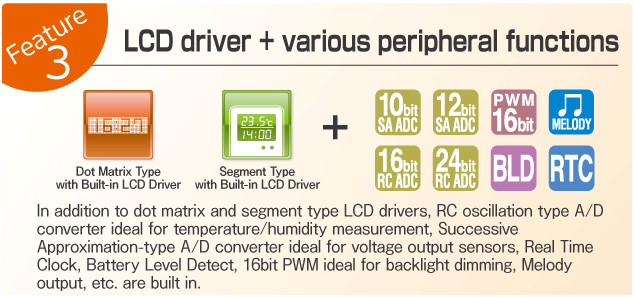

These low-power microcontrollers integrate a boost circuit for driving LCDs, eliminating the need for an external LCD power supply. The lineup covers a wide range of dot counts, from 400 to 1,536. In addition, program memory (32KB-128KB), RAM (2KB-7KB), 3 types of serial communication interfaces (I2C, SSIO, UART), a battery voltage detection circuit, 2 A/D converters (24bit RC oscillation, 12bit successive approximation), melody, buzzer, capture, timer, and general-purpose ports are all integrated into a single chip, making them ideal for compact, battery-driven LCD applications.

Part No.

Operating Conditions

ROM/RAM

Functions/Features

Package

In
chip

Operating
voltage
(V)

Operating*1
frequency

Current*3
con
-sump
-tion
(Typ.
@HALT)

Operating
temper
-ature
(°C)

ROM
capacity
(Byte)

RAM
capacity
(Byte)

WDT

ADC
(Method)

Serial port

LCD
driver

I2C

SSIO*7

UA*8
RT

  • ML610421
    ML610421P



1.1
to
3.6

4.096MHz
500kHz
32.768kHz

0.5μA

–20 to +70
/–40 to +85

Mask 32K*10

2K*11

1

2(RC oscillation)
2(Succes
-sive)

1*5

1

1

Max.
400dot
50seg
×8com

TQFP
120

OK

  • ML610Q421

  • ML610Q421P


1.1
to
3.6

4.096MHz
500kHz
32.768kHz

0.5μA

–20 to +70
/–40 to +85

Flash 32K*10

2K*11

1

2(RC oscillation)
2(Succes
-sive)

1*5

1

1

Max.
400dot
50seg
×8com

TQFP
120

OK

  • ML610422
    ML610422P



1.1
to
3.6

4.096MHz
500kHz
32.768kHz

0.5μA

–20 to +70
/–40 to +85

Mask 32K*10

2K*11

1

2(RC oscillation)
2(Succes
-sive)

1*5

1

1

Max.
800dot
50seg
×16com.

TQFP
120

OK

  • ML610Q422

  • ML610Q422P



1.1
to
3.6

4.096MHz
500kHz
32.768kHz

0.5μA

–20 to +70
/–40 to +85

Flash 32K*10

2K*11

1

2(RC oscillation)
2(Succes
-sive)

1*5

1

1

Max.
800dot
50seg
×16com

TQFP
120

OK

NEW

  • ML610428

  • ML610428P



1.1
to
3.6

4.096MHz
2MHz
32.768kHz

0.5μA

–20 to +70
/–40 to +85

Flash 48K*10

4K*11

1

2(RC oscillation)

1*5

1

1

Max.
1392dot
58seg
×24com

TQFP
128

OK

  • ML610Q428

  • ML610Q428P



1.1
to
3.6

4.096MHz
2MHz
32.768kHz

0.5μA

–20 to +70
/–40 to +85

Flash 48K*10

4K*11

1

2(RC oscillation)

1*5

1

1

Max.
1392dot
58seg
×24com

TQFP
128

OK

NEW

  • ML610429

  • ML610429P



1.1
to
3.6

4.096MHz
2MHz
32.768kHz

0.5μA

–20 to +70
/–40 to +85

Flash 48K*10

4K*11

1

2(RC oscillation)

1*5

1

1

Max.
512dot
64seg
×8com

TQFP
128

OK

  • ML610Q429

  • ML610Q429P



1.1
to
3.6

4.096MHz
2MHz
32.768kHz

0.5μA

–20 to +70
/–40 to +85

Flash 48K*10

4K*11

1

2(RC oscillation)

1*5

1

1

Max.
512dot
64seg
×8com

TQFP
128

OK

  • ML610Q431



1.1
to
3.6

4.096MHz
500kHz
32.768kHz

0.5μA

–20 to +70

Flash 64K*10

3K*11

1

2(RC oscillation)
2(Succes
-sive)

1*5

1

1

Max.
1024dot
64seg
×16com

LQFP
144

OK

  • ML610Q432



1.1
to
3.6

4.096MHz
500kHz
32.768kHz

0.5μA

–20 to +70

Flash 64K*10

3K*11

1

2(RC oscillation)
2(Succes
-sive)

1*5

1

1

Max.
1536dot
64seg
×24com

LQFP
144

OK

  • ML610Q435



1.1
to
3.6

4.096MHz
500kHz
32.768kHz

0.5μA

–20 to +70

Flash 96K*10

3K*11

1

2(RC oscillation)
2(Succes
-sive)

1*3

1

1

Max.
1024dot
64seg
×16com

LQFP
144

OK

  • ML610Q436



1.1
to
3.6

4.096MHz
500kHz
32.768kHz

0.5μA

–20 to +70

Flash 96K*10

3K*11

1

2(RC oscillation)
2(Succes
-sive)

1*5

1

1

Max.
1536dot
64seg
×24com

LQFP
144

OK

  • ML610Q438

  • ML610Q438P



1.1
to
3.6

4.096MHz
2MHz
32.768kHz

0.5μA

–20 to +70
/–40 to +85

Flash 128K*10

7K*11

1

2(RC oscillation)
2(Succes
-sive)

1*5

1

1

Max.
1344dot
56seg
×24com

LQFP
144

OK

  • ML610Q439

  • ML610Q439P



1.1
to
3.6

4.096MHz
2MHz
32.768kHz

0.5μA

–20 to +70
/–40 to +85

Flash 128K*10

7K*11

1

2(RC oscillation)
2(Succes
-sive)

1*5

1

1

Max.
1024dot
64seg
×16com

LQFP
144

OK

*No oscillation stop detection reset function for ML610421B/PB, ML610Q421B/PB, ML610422B/PB, ML610Q422B/PB, ML610Q431A, ML610Q435A, and ML610Q436A.
*By software, ON or OFF of oscillation stop detection reset function for ML610Q438/P and ML610Q439/P is selectable.
*1: 4MHz supports internal PLL, ceramic, crystal, or RC oscillation; 2MHz, 1MHz, or 500kHz supports RC oscillation; 32.768kHz supports crystal oscillation; 32kHz supports RC oscillation
*3: Current consumption during Suspend (HALT) mode at low-speed 32kHz oscillation
*5: Master function only, supports both Fast Mode (400kbps) and Standard Mode (100kbps)
*7: No compatible chip select signals exist for 8bit/ 16bit SPI BUS
*8: Half-duplex communication method
*10: Includes 1KByte test area
*11: Includes 1KByte LCD allocation RAM
